MULTI SPLIT

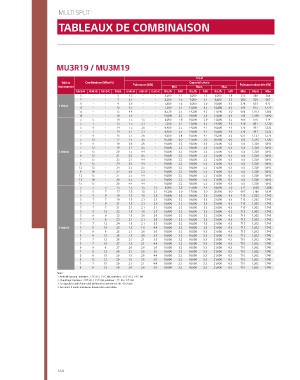

TABLEAUX DE COMBINAISON

MU3R19 / MU3M19

Froid Chaud
Unité en Combinaison (kBtu/h) Capacité totale Unité en Combinaison (kBtu/h) Capacité totale
fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W) fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W)
Unit-A Unit-B Unit-C Total Unit-A Unit-B Unit-C Btu/h kW Btu/h kW Btu/h kW Min Nom Max Unit-A Unit-B Unit-C Total Unit-A Unit-B Unit-C Btu/h kW Btu/h kW Btu/h kW Min Nom Max
5 - - 5 1.5 - - 3,600 1.1 5,000 1.5 6,000 1.8 256 388 564 5 - - 5 1.6 - - 4,000 1.2 5,500 1.6 6,325 1.9 265 394 566
7 - - 7 2.1 - - 4,200 1.2 7,000 2.1 8,400 2.5 280 503 667 7 - - 7 2.5 - - 5,040 1.5 8,400 2.5 9,660 2.8 335 575 715
9 - - 9 2.6 - - 5,400 1.6 9,000 2.6 10,800 3.2 378 633 872 9 - - 9 3.2 - - 6,480 1.9 10,800 3.2 12,420 3.6 429 751 941
1 Unité 1 Unité
12 - - 12 3.5 - - 7,200 2.1 12,000 3.5 14,400 4.2 503 875 1,179 12 - - 12 3.9 - - 7,920 2.3 13,200 3.9 15,180 4.4 526 935 1,178
15 - - 15 4.4 - - 8,520 2.5 14,200 4.2 17,040 5.0 606 1,072 1,366 15 - - 15 4.8 - - 9,900 2.9 16,500 4.8 18,975 5.6 675 1,183 1,554
18 - - 18 5.3 - - 10,800 3.2 18,000 5.3 21,600 6.3 793 1,398 1,890 18 - - 18 5.8 - - 11,880 3.5 19,800 5.8 22,770 6.7 829 1,472 1,922
5 5 - 10 1.5 1.5 - 6,000 1.8 10,000 2.9 12,000 3.5 406 676 914 5 5 - 10 1.6 1.6 - 7,200 2.1 12,000 3.5 13,800 4.0 453 788 1,005
5 7 - 12 1.5 2.1 - 7,200 2.1 12,000 3.5 14,400 4.2 478 831 1,120 5 7 - 12 1.6 2.5 - 8,640 2.5 14,400 4.2 16,560 4.9 546 965 1,265
5 9 - 14 1.5 2.6 - 8,400 2.5 14,000 4.1 16,800 4.9 576 991 1,335 5 9 - 14 1.6 3.2 - 10,080 3.0 16,800 4.9 19,320 5.7 665 1,150 1,508
7 7 - 14 2.1 2.1 - 8,400 2.5 14,000 4.1 16,800 4.9 576 991 1,335 7 7 - 14 2.5 2.5 - 10,080 3.0 16,800 4.9 19,320 5.7 665 1,150 1,508
7 9 - 16 2.1 2.6 - 9,600 2.8 16,000 4.7 19,200 5.6 651 1,157 1,573 7 9 - 16 2.5 3.2 - 11,520 3.4 19,200 5.6 22,080 6.5 763 1,342 1,761
5 12 - 17 1.5 3.5 - 10,200 3.0 17,000 5.0 20,400 6.0 702 1,242 1,720 5 12 - 17 1.6 3.9 - 12,240 3.6 20,400 6.0 23,460 6.9 813 1,456 1,892
9 9 - 18 2.6 2.6 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 9 9 - 18 3.2 3.2 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
7 12 - 19 2.1 3.5 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 7 12 - 19 2.5 3.9 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
2 Unités 5 15 - 20 1.5 4.4 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 2 Unités 5 15 - 20 1.6 4.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
9 12 - 21 2.6 3.5 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 9 12 - 21 3.2 3.9 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
7 15 - 22 2.1 4.4 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 7 15 - 22 2.5 4.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
9 15 - 24 2.6 4.4 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 9 15 - 24 3.2 4.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
12 12 - 24 3.5 3.5 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 12 12 - 24 3.9 3.9 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
9 18 - 27 2.6 5.3 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 9 18 - 27 3.2 5.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
12 15 - 27 3.5 4.4 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 12 15 - 27 3.9 4.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
12 18 - 30 3.5 5.3 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 12 18 - 30 3.9 5.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
15 15 - 30 4.4 4.4 - 10,800 3.2 18,000 5.3 21,600 6.3 753 1,328 1,842 15 15 - 30 4.8 4.8 - 12,960 3.8 21,600 6.3 24,840 7.3 863 1,542 2,087
5 5 5 15 1.5 1.5 1.5 9,000 2.6 15,000 4.4 18,000 5.3 571 1,020 1,388 5 5 5 15 1.6 1.6 1.6 10,800 3.2 18,000 5.3 20,700 6.1 678 1,196 1,551
5 5 7 17 1.5 1.5 2.1 10,200 3.0 17,000 5.0 20,400 6.0 667 1,180 1,634 5 5 7 17 1.6 1.6 2.5 12,240 3.6 20,400 6.0 23,460 6.9 772 1,383 1,797
5 5 9 19 1.5 1.5 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 5 9 19 1.6 1.6 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 7 7 19 1.5 2.1 2.1 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 7 7 19 1.6 2.5 2.5 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 7 9 21 1.5 2.1 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 7 9 21 1.6 2.5 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
7 7 7 21 2.1 2.1 2.1 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 7 7 21 2.5 2.5 2.5 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 5 12 22 1.5 1.5 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 5 12 22 1.6 1.6 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 9 9 23 1.5 2.6 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 9 9 23 1.6 3.2 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001 MULTI SPLIT
7 7 9 23 2.1 2.1 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 7 9 23 2.5 2.5 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 7 12 24 1.5 2.1 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 7 12 24 1.6 2.5 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
3 Unités 5 5 15 25 1.5 1.5 4.4 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 3 Unités 5 5 15 25 1.6 1.6 4.8 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
7 9 9 25 2.1 2.6 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 9 9 25 2.5 3.2 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 9 12 26 1.5 2.6 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 9 12 26 1.6 3.2 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
7 7 12 26 2.1 2.1 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 7 12 26 2.5 2.5 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 7 15 27 1.5 2.1 4.4 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 7 15 27 1.6 2.5 4.8 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
9 9 9 27 2.6 2.6 2.6 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 9 9 9 27 3.2 3.2 3.2 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
7 9 12 28 2.1 2.6 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 9 12 28 2.5 3.2 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 9 15 29 1.5 2.6 4.4 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 9 15 29 1.6 3.2 4.8 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
5 12 12 29 1.5 3.5 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 5 12 12 29 1.6 3.9 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
7 7 15 29 2.1 2.1 4.4 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 7 7 15 29 2.5 2.5 4.8 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
9 9 12 30 2.6 2.6 3.5 10,800 3.2 18,000 5.3 21,600 6.3 715 1,262 1,745 9 9 12 30 3.2 3.2 3.9 12,960 3.8 21,600 6.3 24,840 7.3 820 1,465 2,001
Note : Note :
1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH 1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH
2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH 2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH
3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h 3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h
4. Au moins 2 unités intérieures doivent être raccordées. 4. Au moins 2 unités intérieures doivent être raccordées.
