MULTI SPLIT

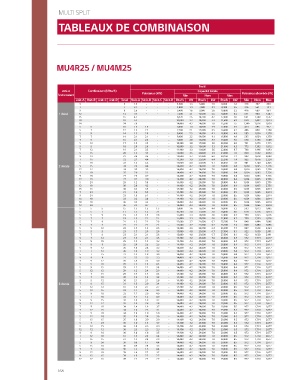

TABLEAUX DE COMBINAISON

MU4R25 / MU4M25

Froid Froid
Unité en Combinaison (kBtu/h) Capacité totale Unité en Combinaison (kBtu/h) Capacité totale
fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W) fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W)
Unit-A Unit-B Unit-C Unit-D Total Unit-A Unit-B Unit-C Unit-D Btu/h kW Btu/h kW Btu/h kW Min Nom Max Unit-A Unit-B Unit-C Unit-D Total Unit-A Unit-B Unit-C Unit-D Btu/h kW Btu/h kW Btu/h kW Min Nom Max
5 5 1.5 - - - 4,500 1.3 5,000 1.5 6,000 1.8 416 467 684 5 5 5 5 20 1.5 1.5 1.5 1.5 12,000 3.5 20,000 5.9 24,000 7.0 759 1,342 1,823
7 7 2.1 - - - 4,800 1.4 7,000 2.1 8,400 2.5 416 551 741 5 5 5 7 22 1.5 1.5 1.5 2.1 13,200 3.9 22,000 6.4 26,400 7.7 853 1,471 2,122
9 9 2.6 - - - 5,400 1.6 9,000 2.6 10,800 3.2 416 689 961 5 5 5 9 24 1.5 1.5 1.5 2.6 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
1 Unité 12 12 3.5 - - - 7,200 2.1 12,000 3.5 14,400 4.2 551 944 1,287 5 5 7 7 24 1.5 1.5 2.1 2.1 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
15 15 4.2 - - - 8,520 2.5 14,200 4.2 17,040 5.0 661 1,149 1,557 5 5 7 9 26 1.4 1.4 1.9 2.4 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
18 18 5.3 - - - 10,800 3.2 18,000 5.3 21,600 6.3 858 1,482 2,013 5 7 7 7 26 1.4 1.9 1.9 1.9 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
24 24 7.0 - - - 14,400 4.2 24,000 7.0 25,500 7.5 1,149 2,026 2,830 5 5 5 12 27 1.3 1.3 1.3 3.1 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
5 5 10 1.5 1.5 - - 6,000 1.8 10,000 2.9 12,000 3.5 423 696 952 5 5 9 9 28 1.3 1.3 2.3 2.3 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
5 7 12 1.5 2.1 - - 7,200 2.1 12,000 3.5 14,400 4.2 496 850 1,158 5 7 7 9 28 1.3 1.8 1.8 2.3 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
5 9 14 1.5 2.6 - - 8,400 2.5 14,000 4.1 16,800 4.9 595 1,034 1,370 7 7 7 7 28 1.8 1.8 1.8 1.8 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
7 7 14 2.1 2.1 - - 8,400 2.5 14,000 4.1 16,800 4.9 595 1,034 1,370 5 5 5 5 7 5 12 29 1.2 1.2 1.7 2.9 14,400 4.2 24,000 7.0 28,800 8.4 924 1,628 2,436
15
30
1.2
1,628
24,000
8.5
7.0
29,000
2,482
924
1.2
1.2
3.5
4.2
14,400
7 9 16 2.1 2.6 - - 9,600 2.8 16,000 4.7 19,200 5.6 670 1,196 1,588 5 7 9 9 30 1.2 1.6 2.1 2.1 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 12 17 1.5 3.5 - - 10,200 3.0 17,000 5.0 20,400 6.0 721 1,279 1,715 7 7 7 9 30 1.6 1.6 1.6 2.1 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
9 9 18 2.6 2.6 - - 10,800 3.2 18,000 5.3 21,600 6.3 772 1,362 1,812 5 5 9 12 31 1.1 1.1 2.0 2.7 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 12 19 2.1 3.5 - - 11,400 3.3 19,000 5.6 22,800 6.7 798 1,446 1,943 5 7 7 12 31 1.1 1.6 1.6 2.7 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 15 20 1.5 4.4 - - 12,000 3.5 20,000 5.9 24,000 7.0 850 1,532 2,042 5 5 7 15 32 1.1 1.1 1.5 3.3 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
9 12 21 2.6 3.5 - - 12,600 3.7 21,000 6.2 24,150 7.1 902 1,618 2,089 7 7 9 9 32 1.5 1.5 2.0 2.0 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 15 22 2.1 4.4 - - 13,200 3.9 22,000 6.4 25,300 7.4 955 1,676 2,230 5 9 9 9 32 1.1 2.0 2.0 2.0 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 18 23 1.5 5.3 - - 13,800 4.0 23,000 6.7 26,450 7.8 981 1,764 2,426 5 5 5 18 33 1.1 1.1 1.1 3.8 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
2 Unités 9 15 24 2.6 4.4 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 5 7 9 12 33 1.1 1.5 1.9 2.6 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
12 12 24 3.5 3.5 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 7 7 7 12 33 1.5 1.5 1.5 2.6 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 18 25 2.0 5.1 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 4 Unités 5 5 9 15 34 1.0 1.0 1.9 3.1 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
9 18 27 2.3 4.7 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 5 5 12 12 34 1.0 1.0 2.5 2.5 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
12 15 27 3.1 3.9 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 5 7 7 15 34 1.0 1.4 1.4 3.1 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 24 29 1.2 5.8 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 7 9 9 9 34 1.4 1.9 1.9 1.9 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
12 18 30 2.8 4.2 - - 14,400 4.2 24,000 7.0 28,800 8.4 1,034 1,865 2,756 5 5 7 18 35 1.0 1.0 1.4 3.6 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
15 15 30 3.5 3.5 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 5 9 9 12 35 1.0 1.8 1.8 2.4 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 24 31 1.6 5.4 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 7 7 9 12 35 1.4 1.4 1.8 2.4 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
29,000
9 24 33 1.9 5.1 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 5 5 7 7 12 9 15 36 1.0 1.4 1.8 2.9 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
924
24,000
7.0
8.5
14,400
1,628
1.4
1.0
12
36
2,482
2.3
4.2
2.3
15 18 33 3.2 3.8 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 7 7 7 15 36 1.4 1.4 1.4 2.9 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
18 18 36 3.5 3.5 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 9 9 9 9 36 1.8 1.8 1.8 1.8 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
12 24 36 2.3 4.7 - - 14,400 4.2 24,000 7.0 29,000 8.5 1,034 1,865 2,814 5 5 9 18 37 1.0 1.0 1.7 3.4 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 5 5 15 1.5 1.5 1.5 - 9,000 2.6 15,000 4.4 18,000 5.3 583 1,023 1,405 5 5 12 15 37 1.0 1.0 2.3 2.9 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 5 7 17 1.5 1.5 2.1 - 10,200 3.0 17,000 5.0 20,400 6.0 678 1,176 1,613 5 7 7 18 37 1.0 1.3 1.3 3.4 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 5 9 19 1.5 1.5 2.6 - 11,400 3.3 19,000 5.6 22,800 6.7 750 1,333 1,826 7 9 9 12 37 1.3 1.7 1.7 2.3 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482 MULTI SPLIT
5 7 7 19 1.5 2.1 2.1 - 11,400 3.3 19,000 5.6 22,800 6.7 750 1,333 1,826 5 9 9 15 38 0.9 1.7 1.7 2.8 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 7 9 21 1.5 2.1 2.6 - 12,600 3.7 21,000 6.2 25,200 7.4 848 1,494 2,096 7 7 9 15 38 1.3 1.3 1.7 2.8 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 7 7 21 2.1 2.1 2.1 - 12,600 3.7 21,000 6.2 25,200 7.4 848 1,494 2,096 7 7 12 12 38 1.3 1.3 2.2 2.2 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 5 12 22 1.5 1.5 3.5 - 13,200 3.9 22,000 6.4 26,400 7.7 897 1,548 2,234 5 5 5 24 39 0.9 0.9 0.9 4.3 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 9 9 23 1.5 2.6 2.6 - 13,800 4.0 23,000 6.7 27,600 8.1 922 1,630 2,441 5 7 9 18 39 0.9 1.3 1.6 3.2 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 7 9 23 2.1 2.1 2.6 - 13,800 4.0 23,000 6.7 27,600 8.1 922 1,630 2,441 5 7 12 15 39 0.9 1.3 2.2 2.7 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 7 12 24 1.5 2.1 3.5 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 9 9 9 12 39 1.6 1.6 1.6 2.2 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
5 5 15 25 1.4 1.4 4.2 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 7 7 7 18 39 1.3 1.3 1.3 3.2 14,400 4.2 24,000 7.0 29,000 8.5 924 1,628 2,482
7 9 9 25 2.0 2.5 2.5 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
5 9 12 26 1.4 2.4 3.2 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 Note :
7 7 12 26 1.9 1.9 3.2 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH
5 7 15 27 1.3 1.8 3.9 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH
9 9 9 27 2.3 2.3 2.3 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h
7 9 12 28 1.8 2.3 3.0 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617 4. Au moins 2 unités intérieures doivent être raccordées.
5 5 18 28 1.3 1.3 4.5 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
5 9 15 29 1.2 2.2 3.6 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
5 12 12 29 1.2 2.9 2.9 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
7 7 15 29 1.7 1.7 3.6 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
5 7 18 30 1.2 1.6 4.2 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
9 9 12 30 2.1 2.1 2.8 - 14,400 4.2 24,000 7.0 28,800 8.4 972 1,714 2,617
3 Unités 7 9 15 31 1.6 2.0 3.4 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 12 12 31 1.6 2.7 2.7 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 12 15 32 1.1 2.6 3.3 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 9 18 32 1.1 2.0 4.0 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 7 18 32 1.5 1.5 4.0 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 9 15 33 1.9 1.9 3.2 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 12 12 33 1.9 2.6 2.6 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 9 18 34 1.4 1.9 3.7 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 12 15 34 1.4 2.5 3.1 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 5 24 34 1.0 1.0 5.0 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 12 18 35 1.0 2.4 3.6 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 15 15 35 1.0 3.0 3.0 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 7 24 36 1.0 1.4 4.7 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 12 15 36 1.8 2.3 2.9 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
12 12 12 36 2.3 2.3 2.3 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 9 18 36 1.8 1.8 3.5 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 12 18 37 1.3 2.3 3.4 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 15 15 37 1.3 2.9 2.9 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 9 24 38 0.9 1.7 4.4 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
5 15 18 38 0.9 2.8 3.3 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
7 7 24 38 1.3 1.3 4.4 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 12 18 39 1.6 2.2 3.2 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
9 15 15 39 1.6 2.7 2.7 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
12 12 15 39 2.2 2.2 2.7 - 14,400 4.2 24,000 7.0 29,000 8.5 972 1,714 2,677
