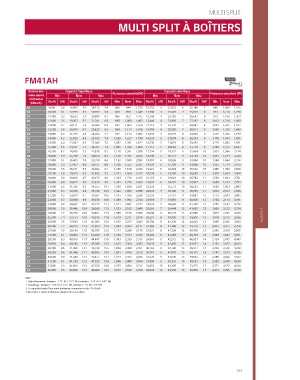

Page 193 - LG CLIM CATALOGUE SANITOR TARIF 2018

MULTI SPLIT MULTI SPLIT

TABLEAUX DE COMBINAISON MULTI SPLIT À BOÎTIERS

FM56AH FM41AH

Somme des Capacité frigorifique Capacité calorifique Somme des Capacité frigorifique Capacité calorifique
codes unités Min Nom Max Puissance absorbée (W) Min Nom Max Puissance absorbée (W) codes unités Min Nom Max Puissance absorbée(W) Min Nom Max Puissance absorbée (W)
intérieures intérieures
(kBtu/h) Btu/h kW Btu/h kW Btu/h kW Min Nom Max Btu/h kW Btu/h kW Btu/h kW Min Nom Max (kBtu/h) Btu/h kW Btu/h kW Btu/h kW Min Nom Max Btu/h kW Btu/h kW Btu/h kW Min Nom Max
23 13,800 4.0 22,437 6.6 25,300 7.4 1,000 1,460 1,989 15,456 4.5 27,948 8.2 32,138 9.4 1,490 2,267 3,240 16 9,600 2.8 16,955 5.0 18,513 5.4 800 844 1,279 10,752 3 21,633 6 25,188 7 890 1,066 1,162
24 14,400 4.2 23,412 6.9 25,705 7.5 1,085 1,520 2,071 16,023 4.7 28,973 8.5 33,407 9.8 1,579 2,402 3,433 18 10,500 3.1 17,759 5.2 19,707 5.8 833 899 1,347 11,760 3 22,407 7 25,913 8 931 1,116 1,258
25 15,000 4.4 24,388 7.1 26,776 7.8 1,128 1,579 2,152 16,590 4.9 29,998 8.8 34,676 10.2 1,626 2,473 3,535 19 11,400 3.3 18,563 5.4 20,900 6.1 866 953 1,415 12,768 4 23,182 7 26,637 8 972 1,166 1,354
26 15,600 4.6 25,363 7.4 27,847 8.2 1,170 1,639 2,233 17,157 5.0 31,024 9.1 35,945 10.5 1,672 2,544 3,637 20 12,000 3.5 19,367 5.7 21,741 6.4 898 1,008 1,483 13,440 4 23,956 7 27,362 8 1,013 1,216 1,450
27 16,200 4.7 26,339 7.7 28,918 8.5 1,213 1,698 2,314 17,724 5.2 32,049 9.4 37,214 10.9 1,719 2,616 3,739 21 12,600 3.7 20,171 5.9 22,582 6.6 931 1,063 1,550 14,112 4 24,731 7 28,087 8 1,055 1,265 1,547
28 16,800 4.9 27,314 8.0 29,989 8.8 1,256 1,758 2,395 18,290 5.4 33,074 9.7 38,483 11.3 1,766 2,687 3,842 22 13,200 3.9 20,975 6.1 23,423 6.9 964 1,117 1,618 14,784 4 25,505 7 28,811 8 1,096 1,315 1,643
29 17,400 5.1 28,290 8.3 31,060 9.1 1,298 1,817 2,476 18,857 5.5 34,099 10.0 39,752 11.7 1,813 2,759 3,944 23 13,800 4.0 21,779 6.4 24,264 7.1 997 1,172 1,686 15,456 5 26,279 8 29,536 9 1,137 1,365 1,739
30 18,000 5.3 29,265 8.6 32,131 9.4 1,355 1,897 2,584 19,424 5.7 35,124 10.3 41,021 12.0 1,860 2,830 4,046 24 14,400 4.2 22,583 6.6 25,105 7.4 1,029 1,227 1,754 16,023 5 27,054 8 30,261 9 1,178 1,415 1,835
31 18,600 5.5 30,241 8.9 33,202 9.7 1,412 1,976 2,693 19,991 5.9 36,149 10.6 42,290 12.4 1,907 2,902 4,148 25 15,000 4.4 23,387 6.9 25,946 7.6 1,062 1,281 1,822 16,590 5 27,828 8 30,985 9 1,219 1,465 1,931
32 19,200 5.6 31,216 9.1 34,273 10.0 1,468 2,056 2,801 20,558 6.0 37,174 10.9 43,560 12.8 1,954 2,973 4,250 26 15,600 4.6 24,191 7.1 26,787 7.9 1,095 1,336 1,890 17,157 5 28,602 8 31,710 9 1,260 1,515 2,027
33 19,800 5.8 32,192 9.4 35,344 10.4 1,525 2,135 2,909 21,125 6.2 38,199 11.2 44,648 13.1 1,973 3,001 4,290 27 16,200 4.7 24,995 7.3 27,628 8.1 1,128 1,391 1,958 17,724 5 29,377 9 32,434 10 1,301 1,564 2,124
34 20,400 6.0 33,167 9.7 36,415 10.7 1,582 2,215 3,018 21,692 6.4 39,224 11.5 45,736 13.4 1,991 3,029 4,330 28 16,800 4.9 25,799 7.6 28,469 8.3 1,160 1,445 2,026 18,290 5 30,151 9 33,159 10 1,342 1,614 2,220
35 21,000 6.2 34,143 10.0 37,486 11.0 1,639 2,294 3,126 22,259 6.5 40,249 11.8 46,824 13.7 2,009 3,057 4,370 29 17,400 5.1 26,603 7.8 29,310 8.6 1,193 1,500 2,093 18,857 6 30,926 9 33,884 10 1,384 1,664 2,316
36 21,600 6.3 35,118 10.3 38,557 11.3 1,696 2,374 3,235 22,825 6.7 41,274 12.1 47,912 14.0 2,028 3,085 4,409 30 18,000 5.3 27,407 8.0 30,151 8.8 1,226 1,555 2,161 19,424 6 31,700 9 34,608 10 1,425 1,714 2,412
37 22,200 6.5 36,094 10.6 39,628 11.6 1,752 2,453 3,343 23,392 6.9 42,299 12.4 49,000 14.4 2,046 3,112 4,449 31 18,600 5.5 28,211 8.3 30,992 9.1 1,259 1,610 2,229 19,991 6 32,474 10 35,333 10 1,466 1,764 2,508
38 22,800 6.7 37,069 10.9 40,699 11.9 1,809 2,533 3,451 23,959 7.0 43,324 12.7 50,286 14.7 2,064 3,140 4,489 32 19,200 5.6 29,015 8.5 31,833 9.3 1,291 1,664 2,297 20,558 6 33,249 10 36,058 11 1,507 1,814 2,604
39 23,400 6.9 38,045 11.2 41,770 12.2 1,866 2,613 3,560 24,526 7.2 44,349 13.0 51,572 15.1 2,082 3,168 4,529 33 19,800 5.8 29,819 8.7 32,674 9.6 1,324 1,719 2,365 21,125 6 34,023 10 36,782 11 1,548 1,863 2,701
40 24,000 7.0 39,020 11.4 42,841 12.6 1,923 2,692 3,668 25,093 7.4 45,374 13.3 52,858 15.5 2,101 3,196 4,569 34 20,400 6.0 30,622 9.0 33,515 9.8 1,357 1,774 2,433 21,692 6 34,797 10 37,507 11 1,589 1,913 2,797
41 24,600 7.2 39,996 11.7 43,912 12.9 1,980 2,772 3,776 25,660 7.5 46,399 13.6 54,144 15.9 2,119 3,224 4,609 35 21,000 6.2 31,426 9.2 34,355 10.1 1,390 1,828 2,501 22,259 7 35,572 10 38,232 11 1,630 1,963 2,893
42 25,200 7.4 40,971 12.0 44,983 13.2 2,037 2,851 3,885 26,227 7.7 47,425 13.9 55,430 16.2 2,137 3,252 4,648 36 21,600 6.3 32,230 9.4 35,196 10.3 1,422 1,883 2,568 22,825 7 36,346 11 38,956 11 1,672 2,013 2,989
43 25,800 7.6 41,947 12.3 46,054 13.5 2,093 2,931 3,993 26,794 7.9 48,450 14.2 56,716 16.6 2,156 3,280 4,688 37 22,200 6.5 33,034 9.7 36,037 10.6 1,455 1,938 2,636 23,392 7 37,121 11 39,681 12 1,713 2,063 3,085
44 26,400 7.7 42,922 12.6 47,125 13.8 2,122 2,971 4,047 27,360 8.0 49,475 14.5 58,000 17.0 2,174 3,308 4,728 38 22,800 6.7 33,838 9.9 36,878 10.8 1,488 1,992 2,704 23,959 7 37,895 11 40,406 12 1,754 2,113 3,181
45 27,000 7.9 43,898 12.9 48,196 14.1 2,150 3,010 4,102 27,927 8.2 50,500 14.8 58,292 17.1 2,211 3,365 4,812 39 23,400 6.9 34,642 10.2 37,719 11.1 1,521 2,047 2,772 24,526 7 38,669 11 41,130 12 1,795 2,162 3,278
46 27,600 8.1 44,873 13.2 49,268 14.4 2,179 3,050 4,156 28,494 8.4 51,525 15.1 58,584 17.2 2,246 3,417 4,884 40 24,000 7.0 35,446 10.4 38,560 11.3 1,553 2,102 2,840 25,093 7 39,444 12 41,855 12 1,836 2,212 3,374
47 28,200 8.3 45,849 13.4 50,339 14.8 2,207 3,090 4,210 29,061 8.5 52,550 15.4 58,876 17.3 2,299 3,498 5,000 41 24,600 7.2 36,250 10.6 39,401 11.5 1,586 2,156 2,908 25,660 8 40,218 12 42,580 12 1,877 2,262 3,470 MULTI SPLIT
48 28,800 8.4 46,824 13.7 51,410 15.1 2,236 3,130 4,265 29,628 8.7 53,575 15.7 59,168 17.3 2,352 3,579 5,116 42 25,200 7.4 37,154 10.9 40,242 11.8 1,619 2,211 2,976 26,227 8 40,992 12 43,304 13 1,918 2,312 3,566
49 29,400 8.6 47,800 14.0 52,481 15.4 2,264 3,170 4,319 30,195 8.8 54,600 16.0 59,460 17.4 2,406 3,660 5,232 43 25,800 7.6 37,692 11.0 41,083 12.0 1,652 2,237 3,043 26,794 8 41,236 12 44,029 13 1,960 2,345 3,662
50 30,000 8.8 48,164 14.1 52,881 15.5 2,299 3,219 4,373 30,762 9.0 54,943 16.1 59,750 17.5 2,459 3,741 5,348 44 26,400 7.7 38,413 11.3 41,924 12.3 1,684 2,262 3,111 27,360 8 41,480 12 44,754 13 2,001 2,377 3,758
51 30,600 9.0 48,529 14.2 53,281 15.6 2,335 3,269 4,428 31,329 9.2 55,286 16.2 60,375 17.7 2,512 3,822 5,464 45 27,000 7.9 39,134 11.5 42,765 12.5 1,717 2,288 3,179 27,927 8 41,724 12 45,478 13 2,042 2,410 3,855
52 31,200 9.1 48,893 14.3 53,680 15.7 2,370 3,318 4,482 31,896 9.3 55,629 16.3 61,000 17.9 2,566 3,903 5,580 46 27,600 8.1 39,400 11.5 43,606 12.8 1,750 2,313 3,247 28,494 8 41,968 12 46,203 14 2,083 2,442 3,951
53 31,800 9.3 49,257 14.4 54,080 15.9 2,405 3,367 4,537 32,462 9.5 55,971 16.4 61,176 17.9 2,579 3,924 5,609 47 28,200 8.3 40,019 11.7 44,447 13.0 1,783 2,339 3,315 29,061 9 42,212 12 46,927 14 2,124 2,475 4,047
54 32,400 9.5 49,621 14.5 54,480 16.0 2,440 3,416 4,591 33,029 9.7 56,314 16.5 61,353 18.0 2,593 3,944 5,638 48 28,800 8.4 40,740 11.9 45,288 13.3 1,815 2,364 3,383 29,628 9 42,456 12 47,652 14 2,165 2,507 4,143
55 33,000 9.7 49,986 14.6 54,880 16.1 2,476 3,466 4,645 33,596 9.8 56,657 16.6 61,529 18.0 2,606 3,964 5,667 49 29,400 8.6 41,300 12.1 46,129 13.5 1,848 2,390 3,451 30,195 9 42,700 13 48,377 14 2,206 2,540 4,239
56 33,600 9.8 50,350 14.8 55,280 16.2 2,511 3,515 4,700 34,163 10.0 57,000 16.7 61,706 18.1 2,619 3,985 5,696 50 30,000 8.8 41,440 12.1 46,503 13.6 1,881 2,416 3,519 30,762 9 42,870 13 49,101 14 2,247 2,573 4,335
57 34,200 10.0 50,714 14.9 55,680 16.3 2,546 3,564 4,754 34,730 10.2 57,343 16.8 61,882 18.1 2,633 4,005 5,725 51 30,600 9.0 41,580 12.2 46,877 13.7 1,914 2,442 3,586 31,329 9 43,040 13 49,826 15 2,289 2,606 4,432
58 34,800 10.2 51,079 15.0 56,080 16.4 2,581 3,614 4,808 35,297 10.3 57,686 16.9 62,059 18.2 2,646 4,025 5,754 52 31,200 9.1 41,720 12.2 47,252 13.8 1,946 2,468 3,654 31,896 9 43,210 13 50,551 15 2,330 2,639 4,528
59 35,400 10.4 51,443 15.1 56,480 16.6 2,616 3,663 4,863 35,864 10.5 58,029 17.0 62,235 18.2 2,659 4,046 5,783 53 31,800 9.3 41,860 12.3 47,626 14.0 1,979 2,494 3,722 32,462 10 43,380 13 51,275 15 2,371 2,672 4,624
60 36,000 10.6 51,807 15.2 56,880 16.7 2,652 3,712 4,917 36,431 10.7 58,371 17.1 62,412 18.3 2,673 4,066 5,812 54 32,400 9.5 42,000 12.3 48,000 14.1 2,012 2,520 3,790 33,029 10 43,550 13 52,000 15 2,412 2,705 4,720
61 36,600 10.7 52,171 15.3 57,280 16.8 2,687 3,761 4,971 36,997 10.8 58,714 17.2 62,588 18.3 2,686 4,086 5,841
62 37,200 10.9 52,536 15.4 57,680 16.9 2,722 3,811 5,026 37,564 11.0 59,057 17.3 62,765 18.4 2,699 4,107 5,870 Note :
1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH
63 37,800 11.1 52,900 15.5 58,080 17.0 2,757 3,860 5,080 38,131 11.2 59,400 17.4 62,941 18.4 2,734 4,160 5,900 2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH
64 38,400 11.3 53,264 15.6 58,592 17.2 2,776 3,887 5,158 38,698 11.3 59,636 17.5 63,047 18.5 2,726 4,147 5,929 3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h
65 39,000 11.4 53,628 15.7 59,104 17.3 2,795 3,913 5,236 39,265 11.5 59,872 17.5 63,153 18.5 2,739 4,168 5,958 4. Au moins 2 unités intérieures doivent être raccordées.
66 39,600 11.6 53,992 15.8 59,616 17.5 2,814 3,940 5,314 39,832 11.7 60,108 17.6 63,259 18.5 2,753 4,188 5,987
67 40,200 11.8 54,356 15.9 60,128 17.6 2,833 3,966 5,392 40,399 11.8 60,344 17.7 63,365 18.6 2,766 4,208 6,016
68 40,800 12.0 54,720 16.0 60,640 17.8 2,852 3,993 5,470 40,966 12.0 60,580 17.8 63,471 18.6 2,780 4,229 6,045
69 41,400 12.1 55,084 16.1 61,152 17.9 2,871 4,019 5,548 41,532 12.2 60,816 17.8 63,576 18.6 2,793 4,249 6,074
70 42,000 12.3 55,448 16.3 61,664 18.1 2,890 4,046 5,626 42,099 12.3 61,052 17.9 63,682 18.7 2,806 4,269 6,103
71 42,600 12.5 55,812 16.4 62,176 18.2 2,909 4,072 5,704 42,666 12.5 61,288 18.0 63,788 18.7 2,820 4,290 6,132
72 43,200 12.7 56,176 16.5 62,688 18.4 2,928 4,099 5,782 43,233 12.7 61,524 18.0 63,894 18.7 2,833 4,310 6,161
73 43,800 12.8 56,540 16.6 63,200 18.5 2,947 4,126 5,860 43,800 12.8 61,760 18.1 64,000 18.8 2,846 4,330 6,190
Note :
1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH
2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH
3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h
4. Au moins 2 unités intérieures doivent être raccordées.
