MULTI SPLIT

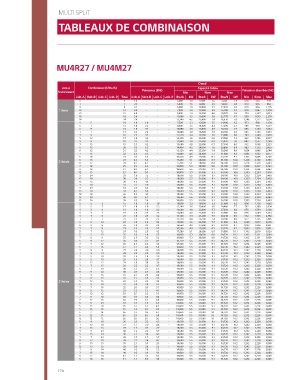

TABLEAUX DE COMBINAISON
MU4R27 / MU4M27
Chaud Chaud
Unité en Combinaison (kBtu/h) Capacité totale Unité en Combinaison (kBtu/h) Capacité totale
fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W) fonctionnement Puissance (kW) Min Nom Max Puissance absorbée (W)
Unit-A Unit-B Unit-C Unit-D Total Unit-A Unit-B Unit-C Unit-D Btu/h kW Btu/h kW Btu/h kW Min Nom Max Unit-A Unit-B Unit-C Unit-D Total Unit-A Unit-B Unit-C Unit-D Btu/h kW Btu/h kW Btu/h kW Min Nom Max
5 5 1.6 - - - 5,000 1.5 5,500 1.6 6,325 1.9 610 610 747 5 5 5 5 20 1.8 1.8 1.8 1.8 14,400 4.2 24,000 7.0 28,800 8.4 878 1,547 2,195
7 7 2.5 - - - 5,400 1.6 8,400 2.5 9,660 2.8 610 665 862 5 5 5 7 22 1.8 1.8 1.8 2.5 15,840 4.6 26,400 7.7 31,680 9.3 969 1,726 2,527
9 9 3.2 - - - 6,480 1.9 10,800 3.2 12,420 3.6 610 864 1,126 5 5 5 9 24 1.8 1.8 1.8 3.2 17,280 5.1 28,800 8.4 34,560 10.1 1,085 1,909 2,927
1 Unité 12 12 3.9 - - - 7,920 2.3 13,200 3.9 15,180 4.4 610 1,067 1,399 5 5 7 7 24 1.8 1.8 2.5 2.5 17,280 5.1 28,800 8.4 34,560 10.1 1,085 1,909 2,927
15 15 4.8 - - - 9,900 2.9 16,500 4.8 18,975 5.6 778 1,337 1,823 5 5 7 9 26 1.7 1.7 2.4 3.0 18,000 5.3 30,000 8.8 36,000 10.6 1,132 2,024 3,198
18 18 5.8 - - - 11,880 3.5 19,800 5.8 22,770 6.7 950 1,649 2,230 5 7 7 7 26 1.7 2.4 2.4 2.4 18,000 5.3 30,000 8.8 36,000 10.6 1,132 2,024 3,198
24 24 7.4 - - - 15,240 4.5 25,400 7.4 26,670 7.8 1,246 2,172 2,654 5 5 5 12 27 1.7 1.7 1.7 4.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 10 1.8 1.8 - - 7,200 2.1 12,000 3.5 14,400 4.2 471 808 1,130 5 5 9 9 28 1.6 1.6 2.9 2.9 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 7 12 1.8 2.5 - - 8,640 2.5 14,400 4.2 17,280 5.1 566 983 1,397 5 7 7 9 28 1.6 2.3 2.3 2.9 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 9 14 1.8 3.2 - - 10,080 3.0 16,800 4.9 20,160 5.9 685 1,163 1,643 7 7 7 7 28 2.3 2.3 2.3 2.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 7 14 2.5 2.5 - - 10,080 3.0 16,800 4.9 20,160 5.9 685 1,163 1,643 5 5 7 12 29 1.6 1.6 2.2 3.8 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 9 16 2.5 3.2 - - 11,520 3.4 19,200 5.6 23,040 6.8 783 1,348 1,928 5 5 5 15 30 1.5 1.5 1.5 4.5 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 12 17 1.8 4.2 - - 12,240 3.6 20,400 6.0 24,480 7.2 832 1,456 2,057 5 7 9 9 30 1.5 2.1 2.7 2.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 9 18 3.2 3.2 - - 12,960 3.8 21,600 6.3 25,920 7.6 882 1,537 2,189 7 7 7 9 30 2.1 2.1 2.1 2.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 12 19 2.5 4.2 - - 13,680 4.0 22,800 6.7 27,360 8.0 932 1,648 2,323 5 5 9 12 31 1.5 1.5 2.6 3.5 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 15 20 1.8 5.3 - - 14,400 4.2 24,000 7.0 28,800 8.4 983 1,732 2,459 5 7 7 12 31 1.5 2.1 2.1 3.5 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 12 21 3.2 4.2 - - 15,120 4.4 25,200 7.4 30,240 8.9 1,034 1,846 2,644 5 5 7 15 32 1.4 1.4 2.0 4.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 15 22 2.5 5.3 - - 15,840 4.6 26,400 7.7 31,680 9.3 1,085 1,932 2,877 7 7 9 9 32 2.0 2.0 2.6 2.6 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 18 23 1.8 6.3 - - 16,560 4.9 27,600 8.1 33,120 9.7 1,163 2,049 3,200 5 9 9 9 32 1.4 2.6 2.6 2.6 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 15 24 3.2 5.3 - - 17,280 5.1 28,800 8.4 34,100 10.0 1,228 2,138 3,463 5 5 5 18 33 1.4 1.4 1.4 5.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
2 Unités
12 12 24 4.2 4.2 - - 17,280 5.1 28,800 8.4 34,100 10.0 1,228 2,138 3,463 5 7 9 12 33 1.4 1.9 2.5 3.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 18 25 2.5 6.3 - - 18,000 5.3 30,000 8.8 34,100 10.0 1,280 2,267 3,463 7 7 7 12 33 1.9 1.9 1.9 3.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 18 27 3.0 6.1 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 5 9 15 34 1.3 1.3 2.4 4.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
12 15 27 4.0 5.0 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 5 12 12 34 1.3 1.3 3.2 3.2 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 24 29 1.6 7.5 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 7 7 15 34 1.3 1.9 1.9 4.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
12 18 30 3.6 5.5 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 7 9 9 9 34 1.9 2.4 2.4 2.4 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
15 15 30 4.5 4.5 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 4 Unités 5 5 7 18 35 1.3 1.3 1.8 4.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 24 31 2.1 7.0 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 9 9 12 35 1.3 2.3 2.3 3.1 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 24 33 2.5 6.6 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 7 7 9 12 35 1.8 1.8 2.3 3.1 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
15 18 33 4.1 5.0 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 7 9 15 36 1.3 1.8 2.3 3.8 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
18 18 36 4.5 4.5 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 5 7 12 12 36 1.3 1.8 3.0 3.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
12 24 36 3.0 6.1 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 7 7 7 15 36 1.8 1.8 1.8 3.8 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
15 24 39 3.5 5.6 - - 18,600 5.5 31,000 9.1 34,100 10.0 1,333 2,234 3,463 9 9 9 9 36 2.3 2.3 2.3 2.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 5 15 1.8 1.8 1.8 - 10,800 3.2 18,000 5.3 21,600 6.3 690 1,192 1,662 5 5 9 18 37 1.2 1.2 2.2 4.4 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 7 17 1.8 1.8 2.5 - 12,240 3.6 20,400 6.0 24,480 7.2 782 1,368 1,934 5 5 12 15 37 1.2 1.2 2.9 3.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 9 19 1.8 1.8 3.2 - 13,680 4.0 22,800 6.7 27,360 8.0 876 1,549 2,183 5 7 7 18 37 1.2 1.7 1.7 4.4 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 7 7 19 1.8 2.5 2.5 - 13,680 4.0 22,800 6.7 27,360 8.0 876 1,549 2,183 7 9 9 12 37 1.7 2.2 2.2 2.9 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 7 9 21 1.8 2.5 3.2 - 15,120 4.4 25,200 7.4 30,240 8.9 972 1,735 2,486 5 9 9 15 38 1.2 2.2 2.2 3.6 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198 MULTI SPLIT
7 7 7 21 2.5 2.5 2.5 - 15,120 4.4 25,200 7.4 30,240 8.9 972 1,735 2,486 7 7 9 15 38 1.7 1.7 2.2 3.6 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 12 22 1.8 1.8 4.2 - 15,840 4.6 26,400 7.7 31,680 9.3 1,020 1,817 2,650 7 7 12 12 38 1.7 1.7 2.9 2.9 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 9 9 23 1.8 3.2 3.2 - 16,560 4.9 27,600 8.1 33,120 9.7 1,093 1,926 2,831 5 5 5 24 39 1.2 1.2 1.2 5.6 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 7 9 23 2.5 2.5 3.2 - 16,560 4.9 27,600 8.1 33,120 9.7 1,093 1,926 2,831 5 7 9 18 39 1.2 1.6 2.1 4.2 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 7 12 24 1.8 2.5 4.2 - 17,280 5.1 28,800 8.4 34,560 10.1 1,142 2,010 3,020 5 7 12 15 39 1.2 1.6 2.8 3.5 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 15 25 1.8 1.8 5.3 - 18,000 5.3 30,000 8.8 34,720 10.2 1,192 2,131 3,068 9 9 9 12 39 2.1 2.1 2.1 2.8 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 9 9 25 2.5 3.2 3.2 - 18,000 5.3 30,000 8.8 34,720 10.2 1,192 2,131 3,068 7 7 7 18 39 1.6 1.6 1.6 4.2 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 9 12 26 1.8 3.2 4.2 - 18,720 5.5 31,200 9.1 34,720 10.2 1,242 2,228 3,068 7 9 9 15 40 1.6 2.0 2.0 3.4 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 7 12 26 2.5 2.5 4.2 - 18,720 5.5 31,200 9.1 34,720 10.2 1,242 2,228 3,068 7 9 12 12 40 1.6 2.0 2.7 2.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 7 15 27 1.7 2.4 5.0 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 5 5 7 24 41 1.1 1.1 1.6 5.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
9 9 9 27 3.0 3.0 3.0 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 5 9 12 15 41 1.1 2.0 2.7 3.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
7 9 12 28 2.3 2.9 3.9 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 5 12 12 12 41 1.1 2.7 2.7 2.7 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 5 18 28 1.6 1.6 5.8 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 7 7 12 15 41 1.6 1.6 2.7 3.3 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 9 15 29 1.6 2.8 4.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 7 7 9 18 41 1.6 1.6 2.0 4.0 18,600 5.5 31,000 9.1 36,000 10.6 1,180 2,116 3,198
5 12 12 29 1.6 3.8 3.8 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 7 15 29 2.2 2.2 4.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 Note :
5 7 18 30 1.5 2.1 5.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 1. Refroidissement : Intérieur : 27°C BS / 19°C BH, extérieur : 35°C BS / 24°C BH
9 9 12 30 2.7 2.7 3.6 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 2. Chauffage : Intérieur : 20°C BS / 15°C BH, extérieur : 7°C BS / 6°C BH
7 9 15 31 2.1 2.6 4.4 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 3. La capacité totale d’une unité intérieure connectée est de 21k Btu/h
7 12 12 31 2.1 3.5 3.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068 4. Au moins 2 unités intérieures doivent être raccordées.
3 Unités 5 12 15 32 1.4 3.4 4.3 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 9 18 32 1.4 2.6 5.1 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 7 18 32 2.0 2.0 5.1 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 9 15 33 2.5 2.5 4.1 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 12 12 33 2.5 3.3 3.3 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 9 18 34 1.9 2.4 4.8 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 12 15 34 1.9 3.2 4.0 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 5 24 34 1.3 1.3 6.4 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 12 18 35 1.3 3.1 4.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 15 15 35 1.3 3.9 3.9 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 7 24 36 1.3 1.8 6.1 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 12 15 36 2.3 3.0 3.8 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
12 12 12 36 3.0 3.0 3.0 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 9 18 36 2.3 2.3 4.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 12 18 37 1.7 2.9 4.4 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 15 15 37 1.7 3.7 3.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 9 24 38 1.2 2.2 5.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 15 18 38 1.2 3.6 4.3 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 7 24 38 1.7 1.7 5.7 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 12 18 39 2.1 2.8 4.2 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
9 15 15 39 2.1 3.5 3.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
12 12 15 39 2.8 2.8 3.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 9 24 40 1.6 2.0 5.5 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
7 15 18 40 1.6 3.4 4.1 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 12 24 41 1.1 2.7 5.3 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
5 18 18 41 1.1 4.0 4.0 - 18,600 5.5 31,000 9.1 34,720 10.2 1,242 2,228 3,068
